Smart Energy Electricity Consumption Power Meter 3 Phase Din Rail Meter Modbus With 50A100A150A200A/5A CT Voltmeter Ammeter ,Easy to Install

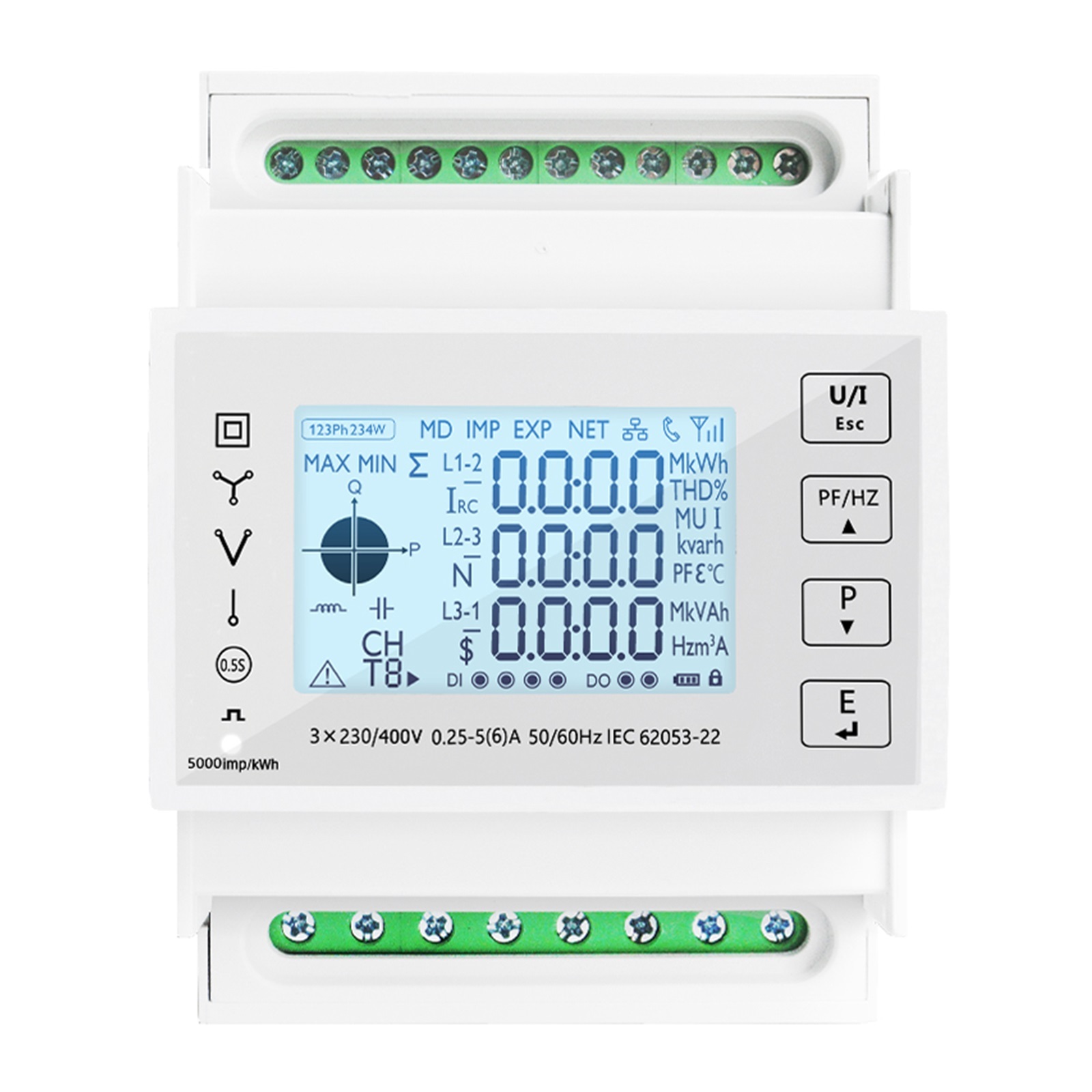

<p>Description</p><p>TAC4300CT series products are three phase DIN rail installation mutil-function energy meter.This series of products can support measurement and analysis of variety of power parameters,such as voltage, current, the four quadrant power parameters, power factor, harmonic content etc. ; Meanwhile they also can provide the measurement of multiple electric energy parameters , such as two way active energy, reactive energy, monthly and daily electricity consumption statistics.It can easily realize the function of remote data read, and adopt the design of large-screen LCD and touch-sensitive key, which can easily carry out the local view and set operation of varity parameters. The product has the function of password protection, which ensures the data security of the product.</p><p>TAC4300CT series products are multi-functional electric energy meters designed for electric energy monitoring of photovoltaic inverter, statistical analysis of new energy electricity consumption, power monitoring needs of power system utilities and intelligent buildings. Its complete communication function is very suitable for various control systems, SCADA systems and energy management systems.</p><p>Characteristics</p><p>6,To provide the analytical data of the total harmonic contents of voltages and currents</p><p>7,Provide a variety of statistical data and local storage functions, such as two-way power, demand and other statistical data. Provide monthly electricity consumption statistics for the last 12 months and daily electricity consumption statistics for the last 31 days</p><p>8,supports the dual-timing function of the meter startup running time and load running time.</p><p>10,Supports optocoupler pulse output interface, and output parameters can be set.</p><p>11,LCD refresh time is 1 second, support manual or automatic scroll display (configurable)</p><p>Package Included</p><p>1 × Meter with 3pcs CT</p><p>Related Products:power monitor,energy monitor,home energy monitor,home power monitor,wifi smart switch,smart home energy monitor,energy monitoring,wifi circuit breaker,smart meter,smart power meter</p>

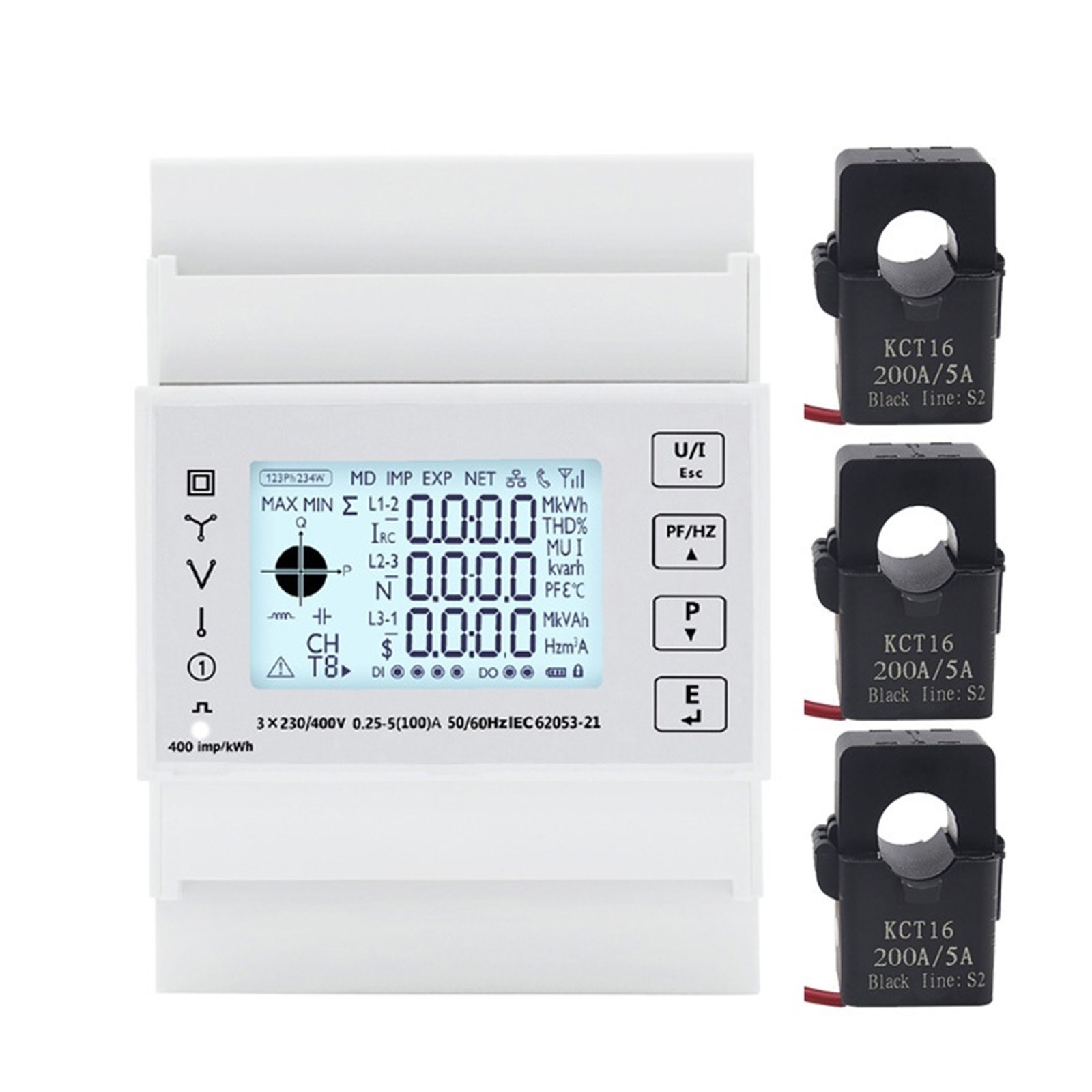

• 1,External current transformers of output types such as 5A/100mV/100mA are supported, and direct access of Rogowski coil is also supported. With the current transformer reverse connection correction function.
• 2,Support external voltage transformer access, input voltage minimum support 30V.

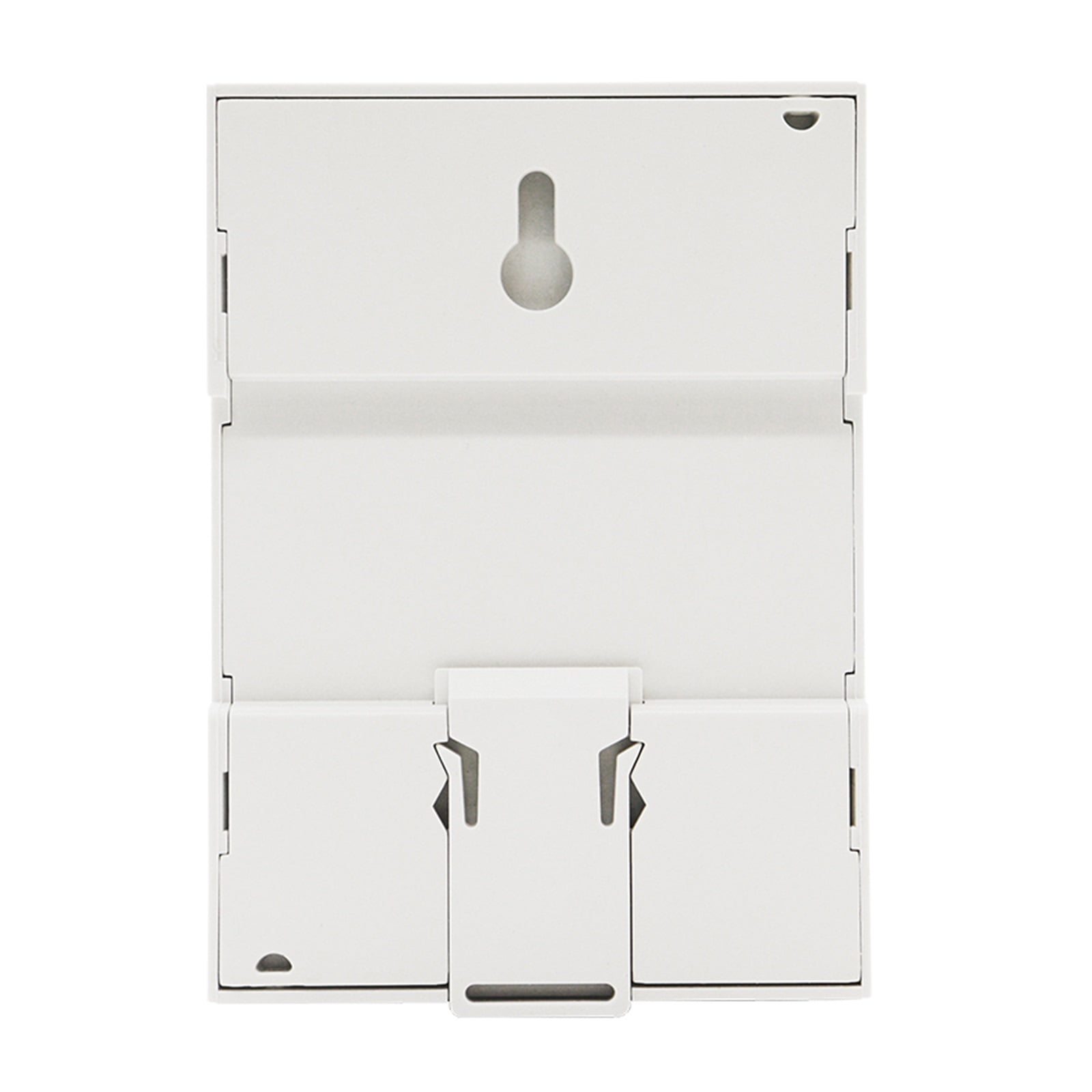

• 3,DIN Rail mounting, standard 4 modulus width.
• 4,Touch button design improves button operability and reduces button failure rate
• 5,Multi-function parameter measurement, providing voltage, current, active power, reactive power, apparent power, power factor, phase Angle, etc.
