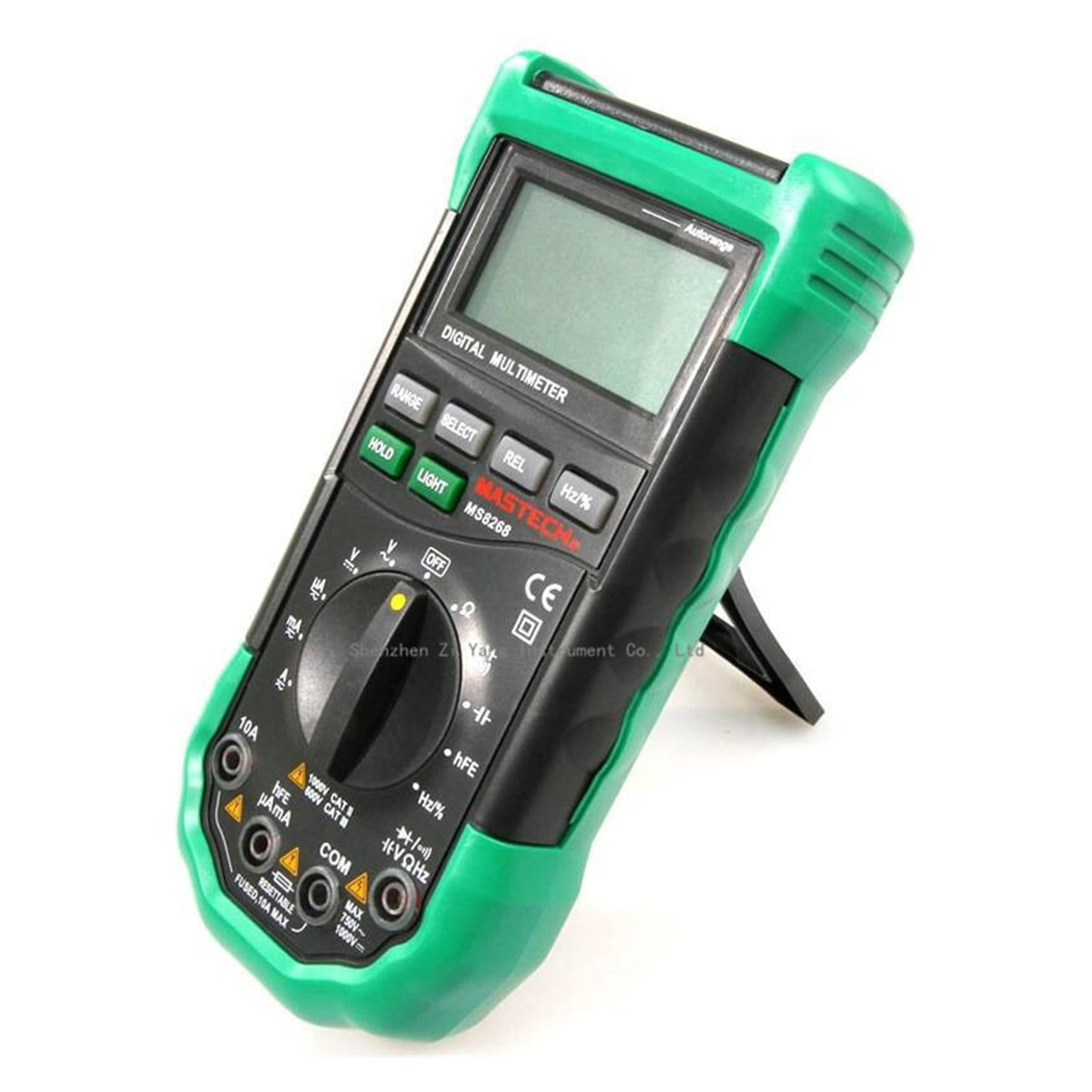

MS8268 Auto Range Digital Multimeter Full Protection Ac/dc Ammeter Voltmeter Ohm Frequency Electrical Tester Diode Test

<p>Display 3 34 digital large LCD with 4000 counts</p><p>Manual Auto ranges</p><p>Full overload protection</p><p>Misconnection alarm system</p><p>"Sleep mode", auto power off &amp; low battery indication</p>

• Electrical Tester Diode, Multimeters, Electrical Instruments, Measurement & Analysis Instruments
• Features
• Data hold
• Backlight
• Builtresettable fuse protection
• Fuse Protection mA and mA file resettable fuse;
• 10A file: F 10A/250V 6.332mm
• Red lights to show the correct terminals
• Audible warning for over-range
• Unit symbol display
• Continuity test
• Diode test
• Duty Cycle Measurement
• Relative value measurement
• Specifications
• DC voltage 400m4V40V400V 0.7%, 1000V ± 0.8%
• AC voltage: 400mV ± 3.0%, 4V/40V/400V ± 0.8%, 750V ± 1.0%
• Resistance: 400/4k/40k/400k/4M ± 1.0%, 40M ± 2.0%
• DC current: 400A/4000A/40mA/400mA ± 1.5%,10A ± 2.0%
• AC current: 400A/4000A/40mA/400mA ± 1.5%,10A ± 3.0%
• Capacitance: 20n/200n/2/20F ± 4.0%
• Frequency: 10/100/1000/10k/200kHz ± 2.0%
• Transistor hFE: 1 ~ 1000
• Continuity test
• Diode test
• Duty Cycle Measurement
• Relative value measurement
• Sampling Rate: approx. 3 times / second
• Test Leads: 1KV 10A
• Safety Standards: IEC1010-1, CAT. III 600V & CAT II 1000V
• Operating Temperature 0 40 C 32 104 F
• Operating Humidity below 80% RH, <10° C non-condensing
• Storage Temperature: -10 ~ 60° C (14~ 140° F)
• Storage Humidity: below 80% RH
• Power: 3 x 1.5V AAA batteries (Not included)
• Dimensions: 195 mm x 92 mm x 55mm (7.68' X 3.62' X 2.17' inch)
• Weight: Approx.380g (13.40oz)
• Note: do not include the battery
