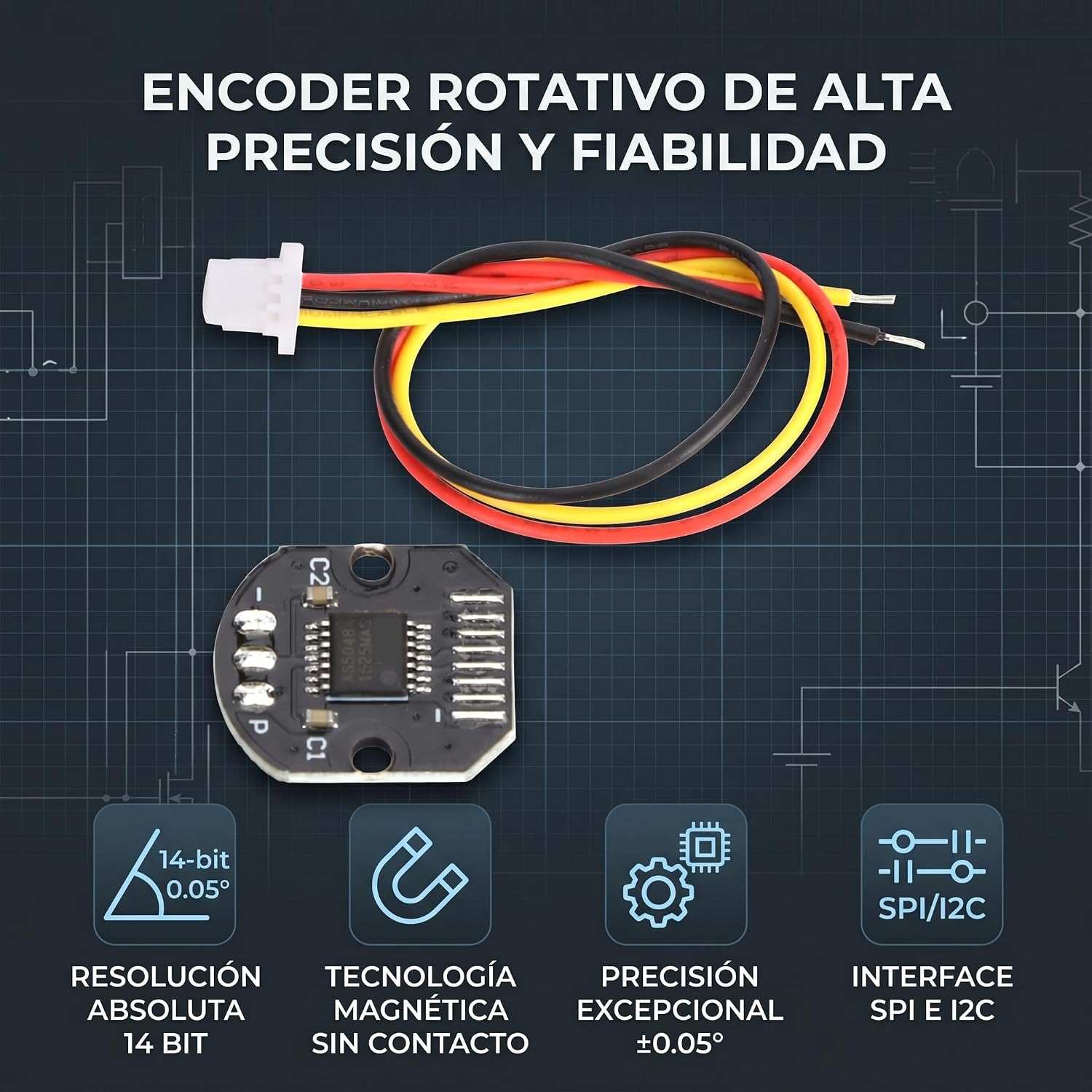

Magnetic Encoder for Stepper Motors, 14-Bit Rotary Position Sensor with PWM and SPI Output, 5V DC, 0.05 Degree Angle Accuracy

Specification: Item Type: Magnetic encoder Resolution: 14-Bit full-scale resolution Angle Accuracy: 0.05° Power Supply Voltage: 5V DC Material: Synthetic paperboard Package List: 1 x Wiring 1 x Magnetic Encoder

• AS5048 also has a very high operating tolerance, including the deviation of the center position between the chip and the paired magnet, the deviation of the air gap between the chip and the paired magnet, and the temperature change between -40°C and +150.

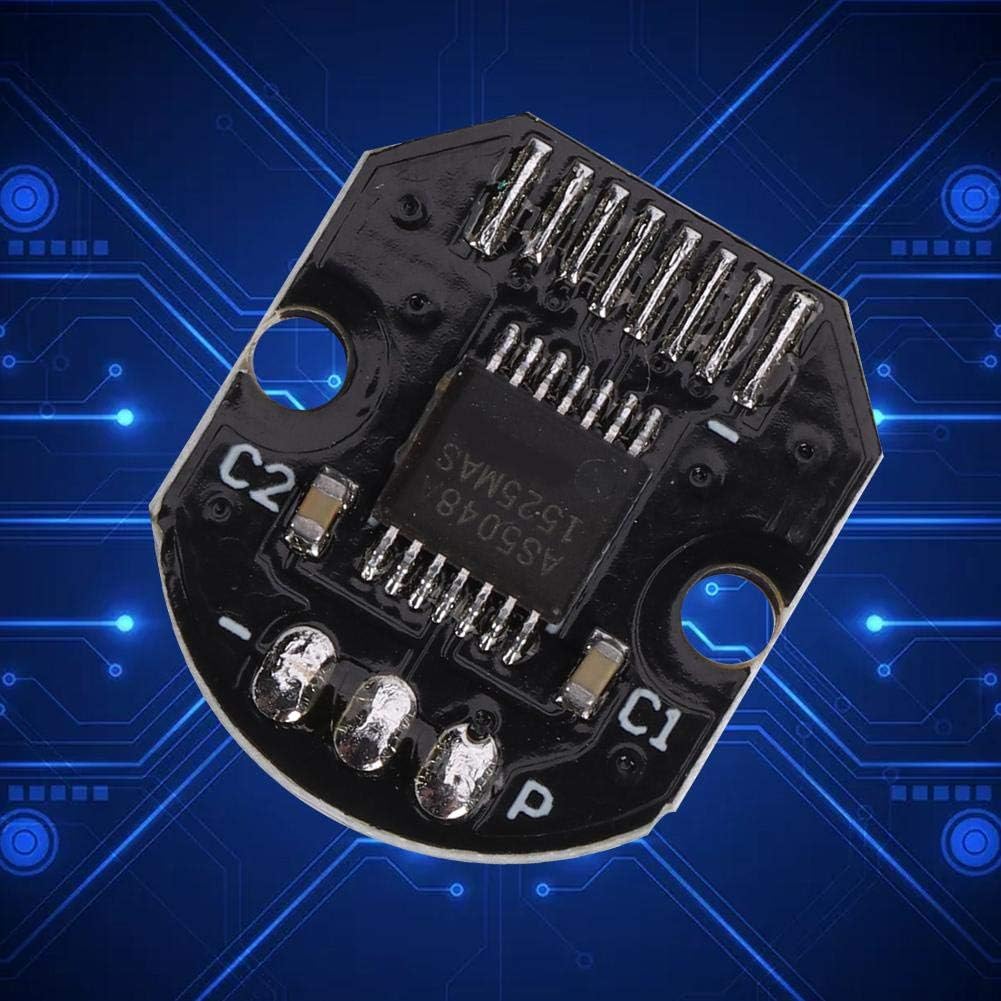

• AS5048 is a 14-bit rotary position sensor (formerly called encoder) for absolute angle measurement and PWM (= pulse width modulation) at 360 degree based on non-contact magnetic sensor technology full-rotation output.
• The device is suitable for shaft applications where a simple two-pole magnet rotates the sensor IC or below and the 0 position can be programmed into the device with simple SPI commands. The absolute magnetic angular position resolution is 14 bits.
• AS5048 provides PWM output and SPI or I2C interface to provide absolute angle measurement for the microcontroller. In the mechanical designing, there is no need to consider the exact pairing of the initial 0 position of the chip and the magnetic poles of.
• The product is featured with 14-Bit rotary position sensor digital angle (interface) and pulse width modulation output.
