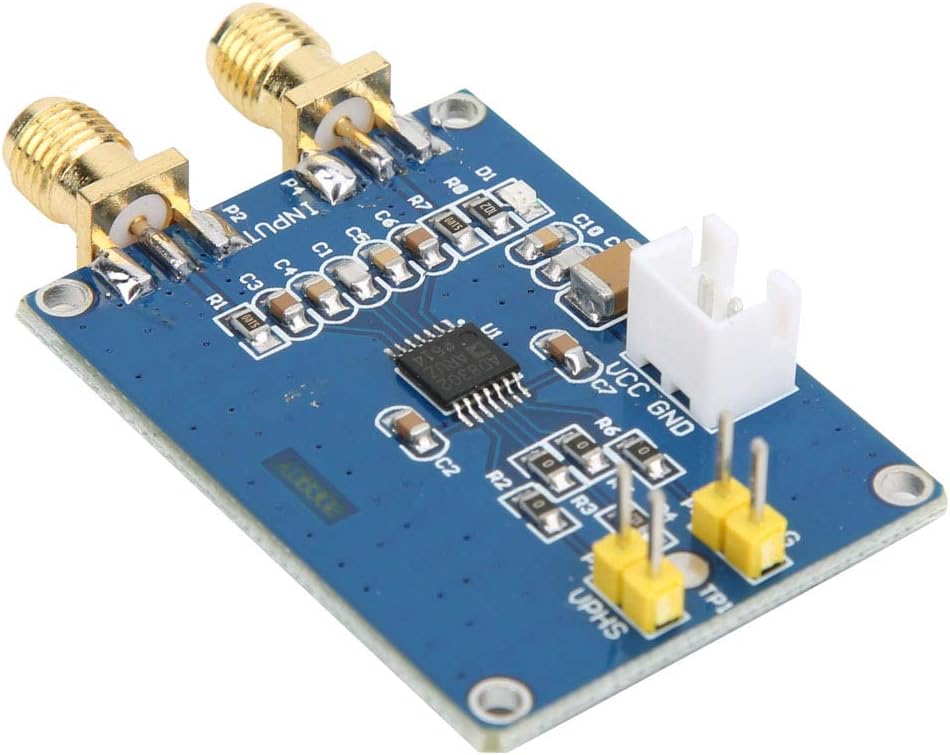

Fafeicy RF Amplitude Phase Detection Module Dual Demodulating Log Amplifier up to 2.7 GHz with 1.8V Reference Voltage for Gain Loss Phase Difference Measurement System

[ RF MEASUREMENT] This advanced module delivers precise gain loss and phase difference measurements for RF signals up to an impressive 2.7 GHz. It is an indispensable tool for RF engineers and hobbyists working on amplifiers filters mixers and systems. The module provides data for circuit tuning and performance validation. [DUAL DEMODULATING LOG AMPLIFIER] At its core is a sophisticated dual demodulating logarithmic amplifier and phase detector enabling simultaneous and independent measurement of amplitude and phase. This integrated design ensures stable and reliable performance for complex signal analysis tasks. It simplifies your measurement setup by combining two essential functions in one compact unit. [WIDE DYNAMIC RANGE & ACCURACY] The module features a wide input power level range from -60dBm to 0dBm with a 50Ω characteristic impedance. It offers exceptional measurement accuracy with a precise amplitude scale of 30mV per dB and a phase scale of 10mV per degree. This high level of is perfect for demanding applications requiring detailed signal characterization. [THREE VERSATILE OPERATING MODES] Maximize your testing flexibility with three distinct operational modes. Utilize the phase measurement mode for direct readings switch to the input level comparator mode for threshold detection or engage the phase controller mode for active feedback loops. This versatility makes it suitable for a wide array of projects from simple measurements to complex control systems. [ & COMPACT DESIGN] Engineered for stability the module includes a reliable 1.8V reference voltage output and features excellent power supply filtering for clean operation. With a video bandwidth response of 30MHz and a compact size of approximately 42x30.5mm it is an ideal solution for benchtop experiments integrated projects and portable test setups requiring robust performance in a small form factor. Spec: Condition: 100% Brand New Item Type: Amplitude

• [ RF MEASUREMENT] This advanced module delivers precise gain loss and phase difference measurements for RF signals up to an impressive 2.7 GHz. It is an indispensable tool for RF engineers and hobbyists working on amplifiers filters mixers and systems. The module provides data for circuit tuning and performance validation.
• [DUAL DEMODULATING LOG AMPLIFIER] At its core is a sophisticated dual demodulating logarithmic amplifier and phase detector enabling simultaneous and independent measurement of amplitude and phase. This integrated design ensures stable and reliable performance for complex signal analysis tasks. It simplifies your measurement setup by combining two essential functions in one compact unit.
• [WIDE DYNAMIC RANGE & ACCURACY] The module features a wide input power level range from -60dBm to 0dBm with a 50Ω characteristic impedance. It offers exceptional measurement accuracy with a precise amplitude scale of 30mV per dB and a phase scale of 10mV per degree. This high level of is perfect for demanding applications requiring detailed signal characterization.
• [THREE VERSATILE OPERATING MODES] Maximize your testing flexibility with three distinct operational modes. Utilize the phase measurement mode for direct readings switch to the input level comparator mode for threshold detection or engage the phase controller mode for active feedback loops. This versatility makes it suitable for a wide array of projects from simple measurements to complex control systems.
• [ & COMPACT DESIGN] Engineered for stability the module includes a reliable 1.8V reference voltage output and features excellent power supply filtering for clean operation. With a video bandwidth response of 30MHz and a compact size of approximately 42x30.5mm it is an ideal solution for benchtop experiments integrated projects and portable test setups requiring robust performance in a small form factor.
