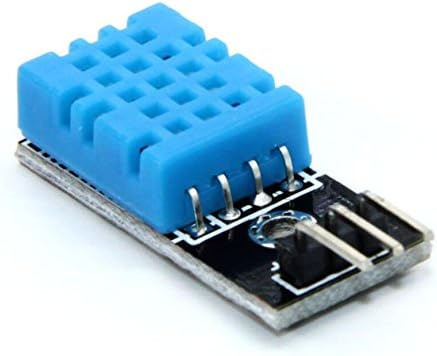

6 pcs lot Single bus digital temperature and humidity sensor electronic building blocks DHT11 module

Size: Length 28mmX Width 12mmX Height 7.2mm Sensor Model: Aosong DHT11 temperature and humidity sensor Operating voltage: DC 5V Features: 1, humidity measurement range: 20 --- 90% RH 2, humidity measurement accuracy: ± 5% RH 3, the temperature measurement range: 0 --- 50 ℃ 4, the temperature measurement accuracy: ± 2 ℃ 5, the working voltage: DC5V / 3.3V 6, digital signal output 7, the data port with pull-up resistor 8, with 3mm fixed screw hole, easy to install Wiring method: VCC → 3.3V / 5V power positive GND → power supply negative DATA → MCU IO port Tips: Do not reverse the VCC and GND, then anti will burn!
